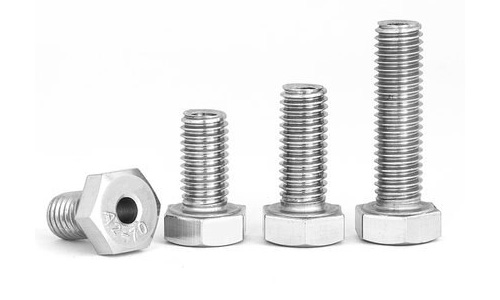

Hex Head Hollow Bolts
Hex Head Hollow Bolts used for construction materials for projects such as docks, bridges, highway systems, and homes, among other things. We offer our Hollow Hex Bolts in packs of different sizes as requested by our customers, all of which are packaged in high-quality materials to prevent harm.
Hex Head Hollow Bolts are also available in different materials and grades like Stainless Steel, Duplex Steel, Super Duplex Steel, Inconel, Monel, Nickel Alloy etc.
Hex Head Hollow Bolts Manufacturer, Half Thread Hex Head Hollow Bolt, SS Hex Head Hollow Bolts, Stainless Steel Hex Head Hollow Bolts, Hex Head Hollow Bolts Supplier in Mumbai, India.
Hex Head Hollow Bolts
| Forming | Hot & Cold Forged |
| Metric Size | M0.6 to M100 |
| Imperial Size | #0 to 4" |
| Threads | UNC, UNF, ISO, BSW & ACME. |
| Standards | DIN, ASME, ISO & IS |
| Variants | Slotted Hex Bolts, Washer Faced Hex Bolts, High Hex Bolts, Hex Hollow Bolts, Metric Hex Bolts, Imperial Hex Bolts |
| Dimension Standards | DIN 601, DIN 931, DIN 960, ISO 4014, ISO 4016, ISO 8765, ASME B18.2.1, ASME B18.2.3.5M, IS 1363-1, IS 1364-1, IS 6639, IS 12427 |
| Alloy Categories | Alloy Steel, Carbon Steel, Stainless Steel, Hastelloy, Inconel, Incoloy, Nickel Bolts, Duplex Steel, Super Duplex, Monel, Brass, Aluminum Bronze, Phosphor Bronze, Silicon Bronze |
| Material Specifications | ASTM A193, ASTM A307, ASTM A449, ASTM A453, ASTM A490, ASTM A540, ASTM A1014, ASTM A1082, ASTM F468, ASTM F593, ASTM F2281, ASTM F3125 |
| Coatings | PTFE (Teflon), Hot Dip Galvanizing, Aluminum Zinc Flake, Zinc Phosphating, Manganese Phosphating, Metallic Zinc, Nickel Bolts Plating, Chrome Plating, Cadmium Plating, Silver Plating, Tin Plating |
Hex Head Hollow Bolts Dimensions
| Bolt Size | A (max) | B | C (min) | D | E | F Thread Length for Bolt Length |
||
|---|---|---|---|---|---|---|---|---|
| max | min | 6″ and shorter |
over 6″ | |||||
| 1/4″ | 0.260 | 7/16 | 0.484 | 11/64 | 0.03 | 0.01 | 0.750 | 1.000 |
| 5/16″ | 0.324 | 1/2 | 0.552 | 7/32 | 0.03 | 0.01 | 0.875 | 1.125 |
| 3/8″ | 0.388 | 9/16 | 0.620 | 1/4 | 0.03 | 0.01 | 1.000 | 1.250 |
| 7/16″ | 0.452 | 5/8 | 0.687 | 19/64 | 0.03 | 0.01 | 1.125 | 1.375 |
| 1/2″ | 0.515 | 3/4 | 0.826 | 11/32 | 0.03 | 0.01 | 1.250 | 1.500 |
| 5/8″ | 0.642 | 15/16 | 1.033 | 27/64 | 0.06 | 0.02 | 1.500 | 1.750 |
| 3/4″ | 0.768 | 1-1/8 | 1.240 | 1/2 | 0.06 | 0.02 | 1.750 | 2.000 |
| 7/8″ | 0.895 | 1-5/16 | 1.447 | 37/64 | 0.06 | 0.02 | 2.000 | 2.250 |
| 1″ | 1.022 | 1-1/2 | 1.653 | 43/64 | 0.09 | 0.03 | 2.250 | 2.500 |
| 1-1/8″ | 1.149 | 1-11/16 | 1.859 | 3/4 | 0.09 | 0.03 | 2.500 | 2.750 |
| 1-1/4″ | 1.277 | 1-7/8 | 2.066 | 27/32 | 0.09 | 0.03 | 2.750 | 3.000 |
| 1-3/8″ | 1.404 | 2-1/16 | 2.273 | 29/32 | 0.09 | 0.03 | 3.000 | 3.250 |
| 1-1/2″ | 1.531 | 2-1/4 | 2.480 | 1 | 0.09 | 0.03 | 3.250 | 3.500 |
| 1-3/4″ | 1.785 | 2-5/8 | 2.893 | 1-5/32 | 0.12 | 0.04 | 3.750 | 4.000 |
| 2″ | 2.039 | 3 | 3.306 | 1-11/32 | 0.12 | 0.04 | 4.250 | 4.500 |
| 2-1/4″ | 2.305 | 3-3/8 | 3.719 | 1-1/2 | 0.19 | 0.06 | 4.750 | 5.000 |
| 2-1/2″ | 2.559 | 3-3/4 | 4.133 | 1-21/32 | 0.19 | 0.06 | 5.250 | 5.500 |
| 2-3/4″ | 2.837 | 4-1/8 | 4.546 | 1-13/16 | 0.19 | 0.06 | 5.750 | 6.000 |
| 3″ | 3.081 | 4-1/2 | 4.959 | 2 | 0.19 | 0.06 | 6.250 | 6.500 |
| 3-1/4″ | 3.335 | 4-7/8 | 5.372 | 2-3/16 | 0.19 | 0.06 | 6.750 | 7.000 |
| 3-1/2″ | 3.589 | 5-1/4 | 5.786 | 2-5/16 | 0.19 | 0.06 | 7.250 | 7.500 |
| 3-3/4″ | 3.858 | 5-5/8 | 6.198 | 2-1/2 | 0.19 | 0.06 | 7.750 | 8.000 |
| 4″ | 4.111 | 6 | 6.612 | 2-11/16 | 0.19 | 0.06 | 8.250 | 8.500 |
Weight Chart Of Hex Head Hollow Bolts
| Diameter | M12 | M16 | M20 | M22 | M24 | M27 | M30 | M36 |
|---|---|---|---|---|---|---|---|---|
| Length | ||||||||
| 30 | 49.1 | |||||||
| 35 | 53.6 | |||||||
| 40 | 58.0 | 105 | ||||||
| 45 | 62.1 | 113 | 188 | |||||
| 50 | 66.6 | 121 | 200 | 257 | ||||
| 55 | 71.0 | 129 | 212 | 272 | ||||
| 60 | 75.4 | 137 | 225 | 286 | 362 | |||
| 65 | 79.9 | 145 | 237 | 301 | 380 | |||
| 70 | 84.3 | 153 | 249 | 316 | 398 | 532 | ||
| 75 | 88.8 | 160 | 262 | 331 | 415 | 554 | 701 | |
| 80 | 93.2 | 168 | 274 | 346 | 433 | 576 | 728 | |
| 85 | 97.6 | 176 | 286 | 361 | 451 | 599 | 756 | 1184 |
| 90 | 102 | 184 | 298 | 375 | 467 | 621 | 784 | 1224 |
| 95 | 107 | 192 | 310 | 390 | 485 | 644 | 812 | 1264 |
| 100 | 199 | 322 | 405 | 503 | 665 | 838 | 1304 | |
| 105 | 207 | 335 | 420 | 520 | 688 | 865 | 1336 | |
| 110 | 215 | 347 | 435 | 538 | 710 | 893 | 1376 | |
| 115 | 223 | 359 | 450 | 556 | 732 | 921 | 1415 | |
| 120 | 231 | 372 | 465 | 574 | 755 | 949 | 1455 | |
| 125 | 239 | 384 | 479 | 591 | 777 | 976 | 1495 | |
| 130 | 247 | 396 | 494 | 609 | 800 | 1004 | 1535 | |
| 135 | 409 | 509 | 627 | 822 | 1032 | 1575 | ||
| 140 | 421 | 524 | 645 | 845 | 1059 | 1615 | ||
| 145 | 433 | 539 | 662 | 867 | 1087 | 1655 | ||
| 150 | 446 | 554 | 680 | 890 | 1115 | 1695 | ||
| 155 | 458 | 569 | 698 | 912 | 1143 | 1735 | ||
| 160 | 584 | 716 | 935 | 1170 | 1775 | |||
| 165 | 599 | 733 | 957 | 1198 | 1815 | |||
| 170 | 751 | 979 | 1226 | 1855 | ||||
| 175 | 769 | 1002 | 1254 | 1895 | ||||
| 180 | 787 | 1024 | 1281 | 1935 | ||||
| 185 | 804 | 1047 | 1309 | 1974 | ||||
| 190 | 822 | 1069 | 1337 | 2014 | ||||
| 195 | 840 | 1092 | 1365 | 2054 | ||||
| 200 | 1114 | 1392 | 2094 |
