Foundation Bolts

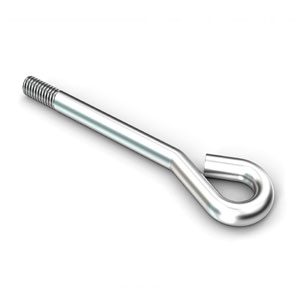

From Mumbai, India, we are a leading Manufacturer and Supplier of Foundation Bolts. Foundation bolts are primarily employed in the fabrication of pre-engineered buildings, as well as the attaching of heavy machinery to foundations and construction. Foundation bolts are manufactured in India in a variety of sizes, shapes, and varieties. The foundation bolts come in four different styles: eye, tower, J, and L. Foundation bolts are used to secure the foundation of engineering structures. The Tower Foundation Bolts are most commonly employed with concrete constructions in the construction of pillars, columns, and the foundations of concrete structures. The type of foundation bolt you should select is determined by a number of criteria, including the size of the machine on which the foundation bolts will be utilised and the forces that the machine will be subjected to.
Plate Foundation Bolt, MS Foundation Bolts, Eye Foundation Bolts, Tower Foundations Bolts, J Type Foundations Bolts, L Type Foundations Bolts Supplier, High Tensile Foundation Bolts Manufacturer in Mumbai, India.
Foundation Bolts Dimension
| Anchor Thread Diameter | Dimensions in mm | Cutting Length mm | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | P | TYPE | |||||||||||
| Square Plate | S | SP | SQ | L | J | JE | ||||||||||||||
| T | W | L | L | L | Cut Length | L | Cut Length | L | Cut Length | L | Cut Length | |||||||||
| 12 | 40 | 16 | 40 | 45 | 100 | - | 50 | 29 | 10 | 75 | 330 | 330 | 355 | 381 | 355 | 455 | 410 | 530 | - | - |
| 16 | 50 | 19 | 40 | 55 | 100 | - | 65 | 35 | 12 | 90 | 400 | 400 | 355 | 388 | 355 | 455 | 420 | 595 | - | - |
| 20 | 60 | 22 | 50 | 70 | 150 | 50 | 75 | 39 | 12 | 90 | 480 | 480 | 405 | 443 | 405 | 485 | 485 | 695 | 355 | 565 |
| 22 | 70 | 25 | 50 | 75 | 150 | 55 | 80 | 48 | 16 | 100 | 570 | 570 | 460 | 506 | 460 | 545 | 545 | 790 | 415 | 660 |
| 24 | 85 | 28 | 55 | 90 | 200 | 65 | 90 | 55 | 20 | 100 | 700 | 700 | 510 | 560 | 510 | 610 | 610 | 890 | 475 | 735 |
| 27 | - | - | 75 | 100 | 200 | 75 | - | - | - | - | - | - | 560 | 619 | 560 | 675 | 673 | 990 | 535 | 935 |
| 30 | 100 | 36 | 75 | 115 | 200 | 85 | 110 | 64 | 20 | 125 | 820 | 820 | 610 | 674 | 610 | 735 | 735 | 1035 | 596 | 945 |
| 33 | - | - | 90 | 125 | 200 | 90 | - | - | - | - | - | - | - | - | 660 | 800 | 800 | 1125 | 655 | 1140 |
| 36 | 115 | 42 | 90 | 125 | 200 | 95 | 115 | 76 | 25 | 150 | 1010 | 1010 | - | - | 710 | 865 | 865 | 1290 | 715 | 1130 |
| 39 | - | - | 100 | 145 | 200 | 110 | - | - | - | - | - | - | - | - | 760 | 925 | 925 | 1360 | 770 | 1225 |
| 42 | 130 | 49 | 115 | 150 | 255 | 120 | 130 | 85 | 25 | 175 | 1120 | 1120 | - | - | 815 | 990 | 990 | 1475 | 830 | 1315 |
| 48 | 150 | 56 | 125 | 180 | 255 | 125 | - | - | - | - | - | - | - | - | 915 | 1120 | 1120 | 1675 | 956 | 1510 |
| 56 | 170 | 63 | 140 | 200 | 255 | 145 | - | - | - | - | - | - | - | - | 1015 | 1270 | 1245 | 1870 | 1070 | 1695 |
| 64 | 190 | 70 | 160 | 220 | 255 | 160 | - | - | - | - | - | - | - | - | 1120 | 1375 | 1370 | 2070 | 1190 | 1910 |
Stock List Of Foundation Bolts
| Eye Foundation Bolt Exporter | Anchor Foundation Bolt |
| L Foundation Bolt | Bent Foundation Bolt |
| J Foundation Bolt Manufacturers in India | Stainless Steel Foundation Bolt Supplier |
| Rag Foundation Bolt Supplier | Lewis Foundation Bolt |
| Cotter Foundation Bolt Manufacturer in Mumbai | Titanium Foundation Bolts |
| High Tensile Foundation Bolts | Tower Foundations Bolts |
| Duplex Steel Foundation Bolt | Nickel Alloy Foundation Bolt |
| Plate Foundation Bolt | Inconel Lewis Foundation Bolt |
| Monel L Foundation Bolt | Foundation Bolt Tube Type |
| Foundation Anchor Bolt Manufacturers | Foundation Bolt at Best Price |
| Pipe Foundation Bolts Supplier | Hook Foundation Bolts Manufacturer |
| ASTM F1554 I Foundation Bolts | ANSI B18.16 High Tensile Foundation Bolt |
| Template Foundation Bolts | SS Foundations Bolts |
| Grade B7 Foundation Bolt | Stainless Steel Foundation Bolts |
