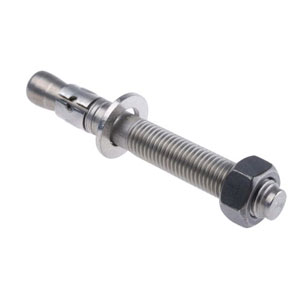

Anchor Bolts

Foundation Bolts

We are professionals in the manufacture of various types of Anchor Bolts in a variety of materials. Anchor bolts are used to secure non-structural and structural items to concrete. Anchor bolts, steel plates, and stiffeners are used to make the fix. Anchor bolts are utilised in a variety of structures, including docks, bridges, transportation networks, and homes. To form a bolted junction, anchor bolts are commonly employed. The Anchor Bolts' shank acts as a dowel, anchoring the joint against sideways shear pressures, while the nut applies an axial clamping force. Different sizes, grades, and forms are available for our anchor bolts. Anchor Bolts are a type of bolt that is used to secure a building.

Sleeve Anchor Bolts, Wedge Anchor Bolt, J Anchor Bolts, I Anchor Bolts, Self Tapping Anchor, Concrete Anchors Supplier, High Tensile Anchor Bolt Manufacturer in Mumbai, India.

Anchor Bolt Specification Chart
standards of British BS 57
standards of ISO ISO 10642
Length 3 millimeter- 200 millimeter
Size
  • Cold Froging : M2 to M24
  • Hot forging M24 to M100, 1-1/2” Diameter, up to 1100 millimeter long
  • CNC and Machining for Customized connecting element: up to M100 / 4” Diameter, up to 1500 millimeter long

M16, M5, M33, (M3.5), (M45), M20, M42, M4, (M22), (M27), (M14), M6, (M18), M36, M48, M12, M2, M3, M10, M24, M30, M8 M160 and as per need
Standard:
  • DIN 7983C ~ISO 7051
  • DIN 7973C ~ISO 1483
  • ISO 14585C ~DIN 7981C
  • ANSI B18.3.1M
  • ISO 14582, ISO 7050, ISO 2009, ISO 14587, ISO 14587, ISO 14584
  • GB/T5783, GB/T5782, GB5783
  • ASME B18.6.3

ASTM, ANSI , ISO, DIN, GB, JIS, BS, IS and all International Standards
Threads BSW, METRIC, UNC, BSF, UNF or as per need
UTS UNF, NPT, UNC, UNS, UNEF, NPTF
DIN Standard B.S. DIN 931, DIN 933, DIN 912, DIN 934, DIN 6923, DIN 603, DIN 7981, DIN 970, DIN916, DIN 7982, DIN 7985, DIN 913
Tolerance +/- 00.01 millimeter to +/- 00.05 millimeter
Dimensions ASME B18.6.3 **Exception: shorter are fully threaded and 6 inches screws
Type Round/ Pan/ Truss head/ Hex Head/ Oval
Head Phillips/Slot,Six-Lobe, Phillips, Slotted etc
Finishing


Self-Colour, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, and some Geometry, Mechanically Applied coating, anodizing, Dacroment, plated zinc-nickel, nickel plated,
Stainless steel: Passivated
special one like DACROMET
black oxide, Zinc ( white, yellow, black, blue)
Head flat head, Pan head, hex head, oval head, phillips head
process of Production Cold Heading, Wire Drawing, Heat Treatment, Insert tapping, Inspection, Packing, Surface Plating
Finish ASTM A380/A380M
Manufacturers GKW, SPAX® Screws, Kundan, Unbrako, Sundaram Precision, APL, EBY Fastener , Infasco Etc.
treatment of Surface
  • Sand blasting
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Polish
  • Passivation
  • Ruspert coating screws
  • Rust preventive oil
  • Anodizing
Uses Wind tower, Railway, Automotive industry, Nuclear power, Electronic industry, Construction
Certificate provided
  • Hardness testing to ISO 6508-1
  • Tensile testing to ISO 898-1
  • Calibrated gauges and tools
  • Tri-Roll Thread Comparators
  • Nut proof load testing to ISO 898-2
  • Charpy Impact testing in accordance with ISO 148-1
  • Suitability test for calibrated preload to EN 14399-10
  • Manufacturer Test Certificate as per EN 10204 / 3.1,
  • Suitability for preloading to EN 14399-2

Anchor Bolts sizes available
3/8″-16 x 1-1/2″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts 3/8″-16 x 1-1/4″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts 3/4″-10 x 3″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts
3/8″-16 x 1″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts 5/8″-11 x 3″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts 3/8″-16 x 3/4″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts
1/2″-13 x 3″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts 1/2″-13 x 2-1/2″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts 5/16″-18 x 1″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts
5/8″-11 x 2-1/2″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts 3/8″-16 x 2-1/2″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts 3/8″-16 x 3″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts
1/2″-13 x 1-1/2″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts 1/2″-13 x 2″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts 5/16″-18 x 1-1/4″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts
1/4″-20 x 1″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts 3/8″-16 x 2″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts 5/8″-11 x 4″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts
1/2″-13 x 1-1/4″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts 3/4″-10 x 2-1/2″ DIN 529 A / DIN 529 B/ DIN 529 D / DIN 529 F Anchor Bolts

Anchor Bolts Dimension
Anchor Bolt Size (D x L x C x T) Plain Finish Part # Hot-Dip Galvanized Part #
Diam. Length Hook Thread
1⁄2 8 2 4 12357 12358
1⁄2 10 2 4 12029 12030
1⁄2 12 2 4 12618 12619
1⁄2 18 4 4 Made to Order 19579
5⁄8 8 2 4 17752 17753
5⁄8 10 2 4 17754 17755
5⁄8 12 3 4 17735 17689
5⁄8 18 4 6 Made to Order 17658
5⁄8 20 4 6 Made to Order 17982
3⁄4 6 3 4 14122 14123
3⁄4 8 3 4 16599 16600
3⁄4 10 3 4 16601 16602
3⁄4 12 4 4 16603 16604
3⁄4 14 4 6 18918 18919
3⁄4 15 4 6 15980 15981
3⁄4 16 4 6 18920 18921
3⁄4 18 4 6 15982 15983
3⁄4 18 4 7 Made to Order 17979
3⁄4 24 4 6 16629 16630
3⁄4 24 4 7 Made to Order 17970
3⁄4 30 4 6 Made to Order 15989
3⁄4 30 4 7 Made to Order 17981
3⁄4 36 4 7 Made to Order 19301
7⁄8 18 4 6 Made to Order 15985
1 12 4 4 18930 19305
1 18 4 6 15986 15987
1 24 4 6 18933 19298
1 36 4 6 15978 15979
1 36 4 7 Made to Order 17729
1 36 4 12 Made to Order 15976
11⁄4 32 6 7 Made to Order 17063
11⁄4 36 5 12 Made to Order 19594
11⁄4 42 6 7 Made to Order 17064

Anchor Bolt weight chart

Length Diameter
5⁄8" 1⁄2" 3⁄4" 1" 7⁄8" 11⁄8" 13⁄8 11⁄4" 11⁄2
11⁄4 31.03 17.08 49.06 104 74.04 - - - -
1 29.04 16.05 47.00 - - - - - -
13⁄4 35.03 20.05 55.03 114 81.09 154 261 205 333
11⁄2 33.01 19.02 52.02 109 78 148 - 197 -
21⁄4 39.08 23.03 61.06 124 90.03 167 279 220 355
2 37.04 21.09 58.04 119 86.01 160 270 212 344
23⁄4 43.09 26.01 67.08 135 98.08 181 300 237 379
21⁄2 41.07 24.07 64.07 130 94.06 174 290 229 366
31⁄4 48.02 28.08 74 146 107 195 321 255 403
3 46.01 27.04 70.09 141 103 188 310 246 391
33⁄4 52.05 31.06 80.02 157 116 209 342 272 428
31⁄2 50.04 30.02 77.01 151 111 202 332 263 416
41⁄4 56.09 34.03 86.04 168 124 223 363 289 453
4 54.07 33 83.03 162 120 216 353 280 441
43⁄4 61.02 37.01 92.07 179 133 237 384 306 478
41⁄2 59 35.07 89.05 173 128 230 374 298 465
51⁄4 65.05 39.09 98.09 190 141 251 405 324 503
5 63.03 38.05 95.08 184 137 244 395 315 490
53⁄4 69.08 42.06 105 201 150 265 426 341 527
51⁄2 67.07 41.02 102 196 146 258 416 332 515
61⁄4 74.01 - 111 212 158 279 447 358 552
6 71.09 44 108 207 154 272 437 349 540
63⁄4 78.05 - 118 223 167 293 468 375 577
61⁄2 76.03 - 114 218 163 286 458 367 565
71⁄4 82.08 - 124 234 175 307 489 392 602
7 80.06 - 121 229 171 300 479 384 589
73⁄4 87.01 - 130 246 183 321 510 410 626
71⁄2 84.09 - 127 240 179 314 500 401 614
9 - - - - - - 563 453 689
81⁄4 - - - 257 192 335 531 427 651
8 89.02 - 133 251 187 328 521 418 639
83⁄4 - - - - - - 552 444 676
81⁄2 - - - 262 196 342 542 435 664
Per inch
Adder		 8.06 5.05 12.04 22.01 16.09 28 42.05 34.04 49.07
